64.1040-23 | Stäubli Electrical Connectors
4 mm plug, screw connection, 1.0 mm², blue, 64.1040-23
Unit Price (€ / pc.)
2.2729 € *
Available: 90 pcs.
Leadtime: On Request **
Total Price:
2.27 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2729 €
10 pcs.
1.9397 €
100 pcs.
1.7850 €
500 pcs.
1.7136 €
1000 pcs.
1.5589 €
*incl. VAT plus shipping costs
**Subject to prior sale

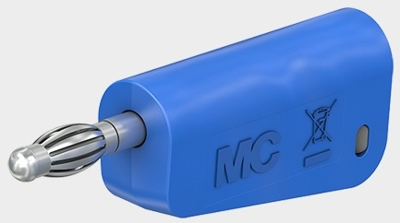

Single plug, 64.1040-23, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. Screw connection.
Technical specifications
| Connection | screw connection | |
| Version | plug | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 19 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Colour | blue | |
| contact surface | nickel-plated | |
| Length | 54.3 mm | |
| Cable cross-section | 1.0 mm² | |
| max. Cable diameter | 3 mm | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 100 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
