64.1044-26 | Stäubli Electrical Connectors
4 mm plug, screw connection, 2.5 mm², purple, 64.1044-26
Unit Price (€ / pc.)
2.3205 € *
Available: 99 pcs.
Leadtime: On Request **
Total Price:
2.32 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3205 €
10 pcs.
1.9754 €
100 pcs.
1.8207 €
500 pcs.
1.7493 €
1000 pcs.
1.5946 €
*incl. VAT plus shipping costs
**Subject to prior sale

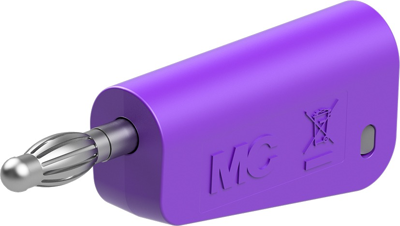

Single plug, 64.1044-26, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. Screw connection.
Technical specifications
| Connection | Schraubanschluss | |
| Version | Stecker | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 32 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Colour | violett | |
| contact surface | vernickelt | |
| Length | 54.3 mm | |
| Cable cross-section | 2,5 mm² | |
| max. Cable diameter | 3.9 mm | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Beutel mit 100 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
