64.2050-25 | Stäubli Electrical Connectors

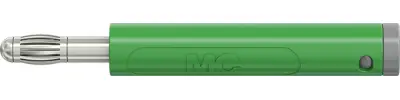

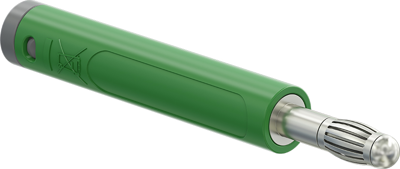

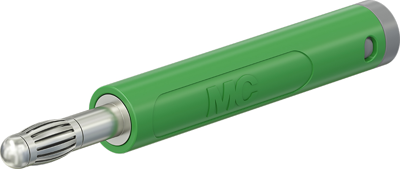

4 mm plug, solder connection, 2.5 mm², green, 64.2050-25
Unit Price (€ / pc.)
1.4518 € *
Available: 0 pcs.
Next delivery: 30 pcs. on 2025-04-08
Leadtime: 4 Weeks **
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4518 €
10 pcs.
1.3804 €
50 pcs.
1.3090 €
100 pcs.
1.2257 €
500 pcs.
1.1067 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connector, 64.2050-25, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads. Solder connection.
Technical specifications
| Connection | Lötanschluss | |
| Version | Stecker | |
| Rated Voltage | 30 V/60 V | |
| Rated current | 32 A | |
| diameter | 4 mm | |
| Colour | grün | |
| contact surface | vernickelt | |
| Length | 60 mm | |
| Cable cross-section | 2,5 mm² | |
| max. Cable diameter | 3.9 mm | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
