64.2050-29 | Stäubli Electrical Connectors
4 mm plug, solder connection, 2.5 mm², white, 64.2050-29
Unit Price (€ / pc.)
1.4518 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4518 €
10 pcs.
1.3804 €
50 pcs.
1.3090 €
100 pcs.
1.2257 €
500 pcs.
1.1067 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connector, 64.2050-29, Stäubli Electrical Connectors

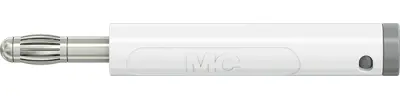

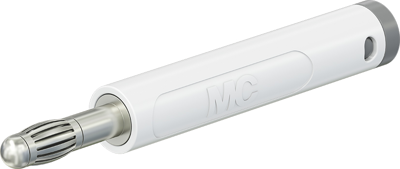

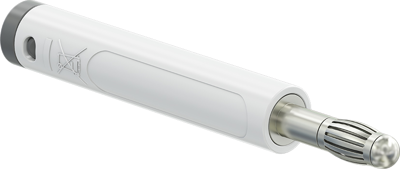

In-line, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads. Solder connection.
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Stecker | |
| Bemessungsspannung | 30 V/60 V | |
| Bemessungsstrom | 32 A | |
| Durchmesser | 4 mm | |
| Farbe | weiß | |
| Kontaktoberfläche | vernickelt | |
| Länge | 60 mm | |
| Leiterquerschnitt | 2,5 mm² | |
| max. Kabeldurchmesser | 3.9 mm | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
