64.2061-24 | Stäubli Electrical Connectors
4 mm socket, solder connection, 2.5 mm², mounting Ø 8 mm, yellow, 64.2061-24
Unit Price (€ / pc.)
1.9754 € *
Available: 100 pcs.
Leadtime: 4 Weeks **
Total Price:
1.98 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9754 €
10 pcs.
1.8802 €
50 pcs.
1.7731 €
100 pcs.
1.6660 €
500 pcs.
1.5113 €
*incl. VAT plus shipping costs
**Subject to prior sale

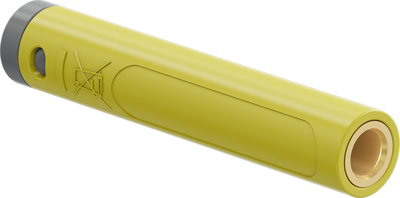

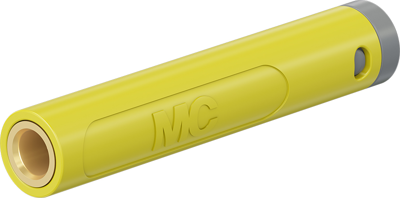

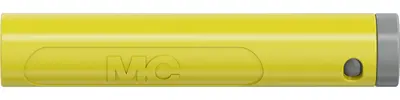

Socket, 64.2061-24, Stäubli Electrical Connectors
In-line, Ø 4 mm rigid for self-assembly of test leads. Solder connection.
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Buchse | |
| Bemessungsspannung | 30 V/60 V | |
| Bemessungsstrom | 32 A | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 8 mm | |
| Farbe | gelb | |
| Kontaktoberfläche | vergoldet | |
| Länge | 43.5 mm | |
| Leiterquerschnitt | 2,5 mm² | |
| max. Kabeldurchmesser | 3.9 mm | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
