64.2065-21 | Stäubli Electrical Connectors
4 mm socket, crimp connection, 2.5 mm², mounting Ø 8 mm, black, 64.2065-21
Order No.: 22F7591
EAN: 4099891968175
MPN:
64.2065-21
BCR25-4A-39 SCHWARZ
Series: Test & Measurement
Unit Price (€ / pc.)
2.4157 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
2.42 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4157 €
10 pcs.
2.2967 €
50 pcs.
2.1658 €
100 pcs.
2.0349 €
500 pcs.
1.8445 €
*incl. VAT plus shipping costs
**Subject to prior sale

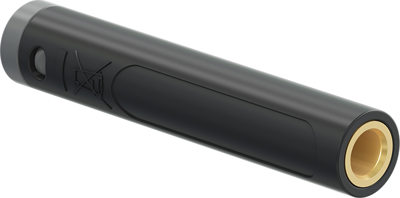

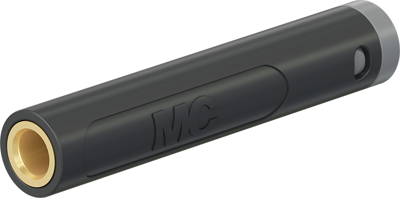

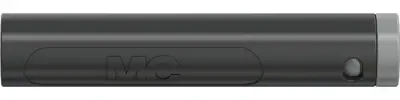

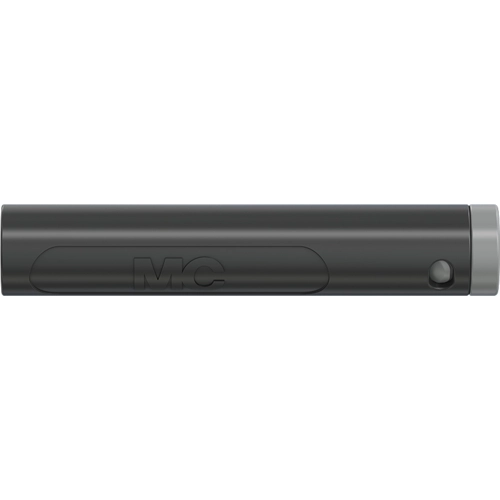

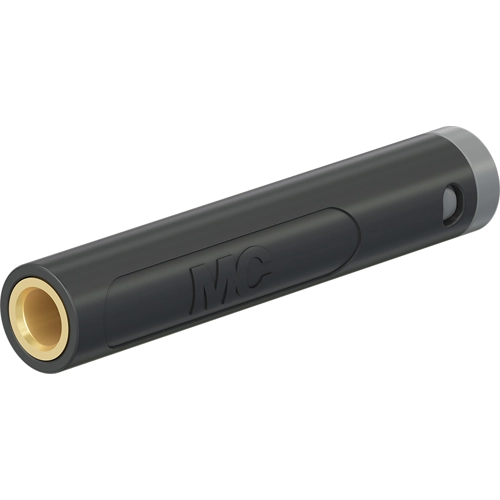

Socket, 64.2065-21, Stäubli Electrical Connectors
In-line, Ø 4 mm rigid for self-assembly of test leads. Crimp connection.
Technical specifications
| Connection | Crimpanschluss | |
| Version | Buchse | |
| Rated Voltage | 30 V/60 V | |
| Rated current | 32 A | |
| diameter | 4 mm | |
| Installation diameter | 8 mm | |
| Colour | schwarz | |
| contact surface | vergoldet | |
| Length | 43.5 mm | |
| Cable cross-section | 2,5 mm² | |
| max. Cable diameter | 3.9 mm | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
