64.3010-29 | Stäubli Electrical Connectors
4 mm socket, plug-in connection, mounting Ø 8.2 mm, white, 64.3010-29
Unit Price (€ / pc.)
1.2614 € *
Available: 137 pcs.
Leadtime: 4 Weeks **
Total Price:
1.26 € *
Price list
Quantity
Price per unit*
1 pcs.
1.2614 €
20 pcs.
1.1543 €
100 pcs.
1.0472 €
500 pcs.
0.9401 €
1000 pcs.
0.8806 €
*incl. VAT plus shipping costs
**Subject to prior sale

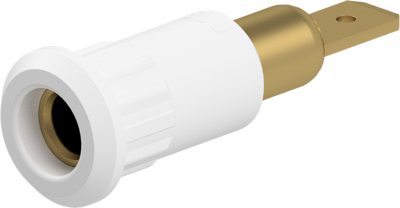

4 mm panel socket, 64.3010-29, Stäubli Electrical Connectors
Insulated, Ø 4 mm, rigid. Machined brass. The socket is pressed into predrilled panels of plastic, metal etc. Flat connecting tab 4.8 mm x 0.8 mm.
Technical specifications
| Connection | plug-in connection | |
| Version | press-in socket | |
| Rated Voltage | 30 V/60 V | |
| Rated current | 25 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Installation diameter | 8.2 mm | |
| Colour | white | |
| contact surface | gold-plated | |
| Length | 30 mm | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Carton with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
