64.3013-24 | Stäubli Electrical Connectors
4 mm socket, plug-in connection, mounting Ø 8.2 mm, yellow, 64.3013-24
Unit Price (€ / pc.)
0.4998 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
0.50 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4998 €
20 pcs.
0.4641 €
100 pcs.
0.4284 €
500 pcs.
0.4046 €
1000 pcs.
0.3689 €
*incl. VAT plus shipping costs
**Subject to prior sale

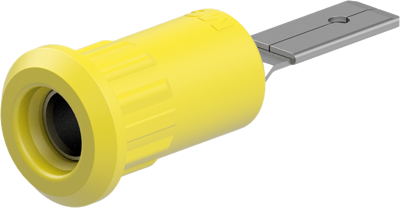

4 mm panel socket, 64.3013-24, Stäubli Electrical Connectors
Insulated, Ø 4 mm, rigid. Brass sheet, punched and rolled. The socket is pressed into predrilled panels of plastic, metal etc. Flat connecting tab 4.8 mm x 0.8 mm, can be bent to 90° once only.
Technical specifications
| Connection | plug-in connection | |
| Version | press-in socket | |
| Rated Voltage | 30 V/60 V | |
| Rated current | 25 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Installation diameter | 8.2 mm | |
| Colour | yellow | |
| contact surface | nickel-plated | |
| Length | 29.5 mm | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Carton with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
