64.3040-29 | Stäubli Electrical Connectors
4 mm socket, plug-in connection, mounting Ø 8.1 mm, white, 64.3040-29
Unit Price (€ / pc.)
1.6660 € *
Available: 28 pcs.
Leadtime: 4 Weeks **
Total Price:
1.67 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6660 €
20 pcs.
1.4161 €
100 pcs.
1.2971 €
500 pcs.
1.2138 €
1000 pcs.
1.1186 €
*incl. VAT plus shipping costs
**Subject to prior sale

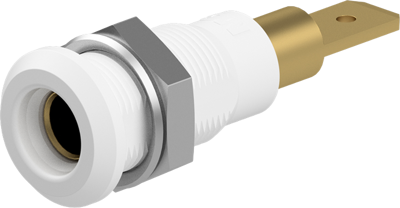

4 mm panel socket, 64.3040-29, Stäubli Electrical Connectors
Insulated, Ø 4 mm, rigid. Machined brass. The socket can be screw-mounted in predrilled panels. Flat connecting tab 4.8 mm x 0.8 mm.
Technical specifications
| Anschluss | Steckanschluss | |
| Ausführung | Einbaubuchse | |
| Bemessungsspannung | 30 V/60 V | |
| Bemessungsstrom | 25 A | |
| Berührungssicher | No | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 8.1 mm | |
| Farbe | weiß | |
| Kontaktoberfläche | vergoldet | |
| Länge | 30 mm | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Karton mit 20 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
