64.3042-21 | Stäubli Electrical Connectors

4 mm socket, solder connection, mounting Ø 8.1 mm, black, 64.3042-21

Order No.: 22F7201
EAN: 4099891624101
MPN:
64.3042-21
LB4H-IE/N SCHWARZ
Series: LB4H-IE/N
Stäubli Electrical Connectors
64.3042-21 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
1.0472 € *
Available: 754 pcs.
Leadtime: 5 Weeks **
Total Price:
1.05 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0472 €
20 pcs.
0.9639 €
100 pcs.
0.8687 €
500 pcs.
0.7854 €
1000 pcs.
0.7378 €
*incl. VAT plus shipping costs
**Subject to prior sale

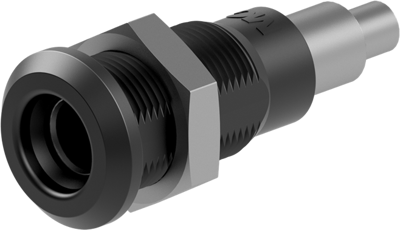

4 mm panel socket, 64.3042-21, Stäubli Electrical Connectors

Insulated, Ø 4 mm, rigid. Machined brass. The socket can be screw-mounted in predrilled panels. Solder connection.

Technical specifications
Connection solder connection
Version panel socket
Rated Voltage 30 V/60 V
Rated current 25 A
Touch safe No
diameter 4 mm
Installation diameter 8.1 mm
Colour black
contact surface nickel-plated
Length 26 mm
Stackable No
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Carton with 20 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
