64.3042-28 | Stäubli Electrical Connectors
4 mm socket, solder connection, mounting Ø 8.1 mm, gray, 64.3042-28
Unit Price (€ / pc.)
1.0829 € *
Available: 20 pcs.
Leadtime: 3 Weeks **
Total Price:
1.08 € *
Price list
Quantity
Price per unit*
1 pcs.
1.0829 €
20 pcs.
0.9877 €
100 pcs.
0.8925 €
500 pcs.
0.8092 €
1000 pcs.
0.7616 €
*incl. VAT plus shipping costs
**Subject to prior sale

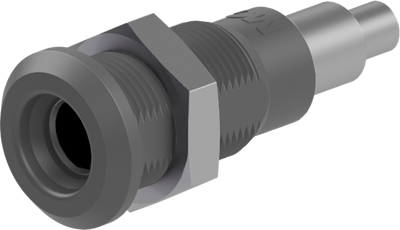

4 mm panel socket, 64.3042-28, Stäubli Electrical Connectors
Insulated, Ø 4 mm, rigid. Machined brass. The socket can be screw-mounted in predrilled panels. Solder connection.
Technical specifications
| Connection | solder connection | |
| Version | panel socket | |
| Rated Voltage | 30 V/60 V | |
| Rated current | 25 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Installation diameter | 8.1 mm | |
| Colour | gray | |
| contact surface | nickel-plated | |
| Length | 26 mm | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
| Original Packaging | Carton with 20 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
