64.9195-22 | Stäubli Electrical Connectors
4 mm plug, screw connection, 2.5 mm², red, 64.9195-22
Vom Hersteller nicht mehr lieferbar
Unit Price (€ / pc.)
3.0464 € *
Available: 21 pcs.
Leadtime: 3 Weeks **
Total Price:
3.05 € *
Price list
Quantity
Price per unit*
1 pcs.
3.0464 €
25 pcs.
2.6775 €
100 pcs.
2.3443 €
500 pcs.
2.2491 €
1000 pcs.
2.1063 €
*incl. VAT plus shipping costs
**Subject to prior sale

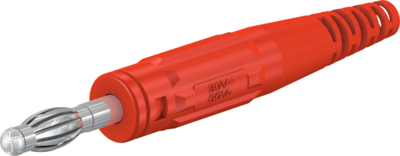

4 mm Plug, 64.9195-22, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads. Screw connection.
Technical specifications
| Connection | Schraubanschluss | |
| Version | Stecker | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 32 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Colour | rot | |
| contact surface | vernickelt | |
| Length | 73 mm | |
| Cable cross-section | 2,5 mm² | |
| max. Cable diameter | 3.9 mm | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
