64.9325-20 | Stäubli Electrical Connectors
4 mm plug, screw connection, 1.0 mm², yellow/green, 64.9325-20
Unit Price (€ / pc.)
6.1047 € *
Available: 20 pcs.
Leadtime: 2 Weeks **
Total Price:
6.10 € *
Price list
Quantity
Price per unit*
1 pcs.
6.1047 €
25 pcs.
5.3669 €
100 pcs.
4.7124 €
500 pcs.
4.5339 €
1000 pcs.
4.2364 €
*incl. VAT plus shipping costs
**Subject to prior sale

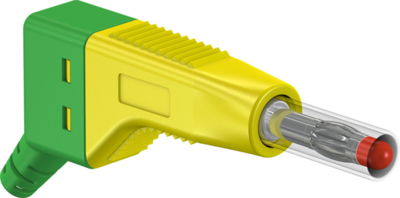

4 mm Plug, 64.9325-20, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads. With retractable sleeve to prevent accidental touching. Screw connection.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Stecker | |
| Bemessungsspannung | 30 VAC/60 VDC | |
| Bemessungsstrom | 19 A | |
| Berührungssicher | Yes | |
| Durchmesser | 4 mm | |
| Farbe | gelb/grün | |
| Kontaktoberfläche | vernickelt | |
| Länge | 59 mm | |
| Leiterquerschnitt | 1,0 mm² | |
| max. Kabeldurchmesser | 3.9 mm | |
| Stapelbar | Yes |
Download
Logistics
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
