64.9701-29 | Stäubli Electrical Connectors
4 mm plug, screw connection, 2.5 mm², CAT II, white, 64.9701-29
Unit Price (€ / pc.)
5.1527 € *
Available: 83 pcs.
Leadtime: 2 Weeks **
Total Price:
5.15 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1527 €
10 pcs.
4.7600 €
50 pcs.
4.4863 €
100 pcs.
4.2364 €
500 pcs.
3.9151 €
*incl. VAT plus shipping costs
**Subject to prior sale

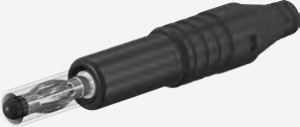

Plug, 64.9701-29, Stäubli Electrical Connectors
In-line, Ø 4 mm, with spring-loaded MULTILAM for self-assembly of test leads. With retractable sleeve to prevent accidental touching.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Stecker | |
| Bemessungsspannung | 60 V | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | Yes | |
| Durchmesser | 4 mm | |
| Farbe | weiß | |
| Kontaktoberfläche | vernickelt | |
| Länge | 71 mm | |
| Leiterquerschnitt | 2,5 mm² | |
| max. Kabeldurchmesser | 3.9 mm | |
| Messkategorie | CAT II | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
