65.3349-24 | Stäubli Electrical Connectors

2 mm jack, solder/crimp connection, 0.25-0.5 mm², yellow, 65.3349-24

Order No.: 22F7287
EAN: 4099891759629
MPN:
65.3349-24
MS255-B GELB
Series: MS255-B
Stäubli Electrical Connectors
65.3349-24 Stäubli Electrical Connectors Laboratory Connectors Image 1
65.3349-24 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Print
Key Specification:
Version socket
diameter 2 mm
Colour yellow
Connection solder/crimp connection
contact surface gold-plated
Show 6 variants
Download Datasheet Technical specifications
Unit Price (€ / pc.)
4.8552 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Add to Cart
Total Price:
4.86 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8552 €
10 pcs.
4.4625 €
50 pcs.
4.1888 €
100 pcs.
3.9389 €
500 pcs.
3.6771 €
*incl. VAT plus shipping costs
**Subject to prior sale
Description
Technical specifications
Download
Compliance
Variations

Touch-safe connector, 65.3349-24, Stäubli Electrical Connectors

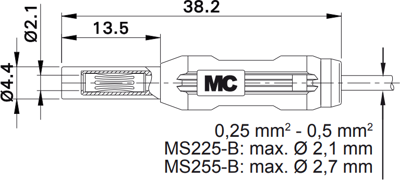

Axial, gold-plated Ø 2 mm socket with spring-loaded contact blade, suitable for rigid Ø 2 mm plugs with rigid insulating sleeve for self-assembly of connecting cables.
Technical specifications
Connection solder/crimp connection
Version socket
Touch safe Yes
diameter 2 mm
Colour yellow
contact surface gold-plated
Length 38.2 mm
Cable cross-section 0.25-0.5 mm²
max. Cable diameter 2.7 mm
Stackable No
Show similar products 0
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
