65.9182-24 | Stäubli Electrical Connectors
2 mm plug, solder connection, 0.5 mm², CAT II, yellow, 65.9182-24
Unit Price (€ / pc.)
2.3562 € *
Available: 58 pcs.
Leadtime: 4 Weeks **
Total Price:
2.36 € *
Price list
Quantity
Price per unit*
1 pcs.
2.3562 €
10 pcs.
1.9992 €
100 pcs.
1.8326 €
500 pcs.
1.7731 €
1000 pcs.
1.6184 €
*incl. VAT plus shipping costs
**Subject to prior sale

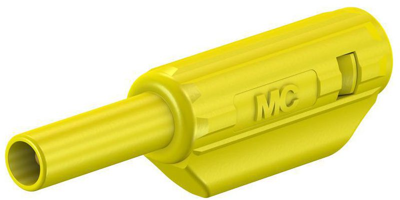

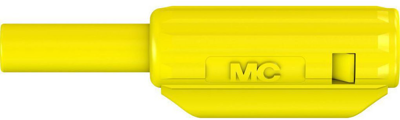

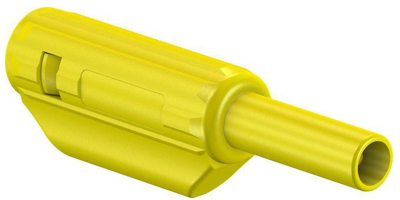

2 mm Plug, 65.9182-24, Stäubli Electrical Connectors
Stackable, Ø 2 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve.
Technical specifications
| Anschluss | Lötanschluss | |
| Ausführung | Stecker | |
| Bemessungsspannung | 600 V | |
| Bemessungsstrom | 10 A | |
| Berührungssicher | Yes | |
| Durchmesser | 2 mm | |
| Farbe | gelb | |
| Kontaktoberfläche | vergoldet | |
| Länge | 36 mm | |
| Leiterquerschnitt | 0,5 mm² | |
| max. Kabeldurchmesser | 2.7 mm | |
| Messkategorie | CAT II | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
