65.9193-23 | Stäubli Electrical Connectors

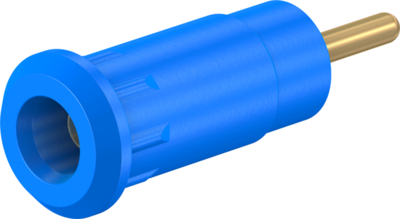

2 mm socket, round plug connection, mounting Ø 8.3 mm, CAT III, blue, 65.9193-23
Unit Price (€ / pc.)
1.9516 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.95 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9516 €
25 pcs.
1.6541 €
100 pcs.
1.5351 €
500 pcs.
1.4399 €
1000 pcs.
1.3328 €
*incl. VAT plus shipping costs
**Subject to prior sale
2 mm Socket, 65.9193-23, Stäubli Electrical Connectors
Insulated, rigid, accepting spring-loaded Ø 2 mm plugs with rigid insulating sleeve. The socket is pressed into pre-drilled panels of plastic, metal, etc. Connection: Round connecting pin Ø 1.9 mm.
Technical specifications
| Anschluss | Rundsteckanschluss | |
| Ausführung | Einpressbuchse | |
| Bemessungsspannung | 600 V | |
| Bemessungsstrom | 10 A | |
| Berührungssicher | No | |
| Durchmesser | 2 mm | |
| Einbaudurchmesser | 8.3 mm | |
| Farbe | blau | |
| Kontaktoberfläche | vergoldet | |
| Länge | 29 mm | |
| Messkategorie | CAT III | |
| Stapelbar | No |
Download
Logistics
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
