66.2024-22 | Stäubli Electrical Connectors

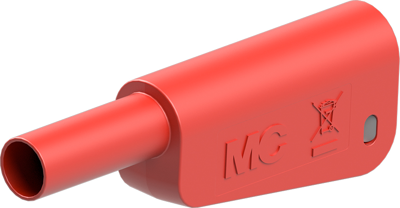

4 mm plug, screw connection, 2.5 mm², CAT II, CAT III, red, 66.2024-22
Unit Price (€ / pc.)
3.1178 € *
Available: 94 pcs.
Leadtime: 2 Weeks **
Total Price:
3.12 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1178 €
10 pcs.
2.7489 €
100 pcs.
2.4038 €
500 pcs.
2.3086 €
1000 pcs.
2.1658 €
*incl. VAT plus shipping costs
**Subject to prior sale
Single plug, 66.2024-22, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Screw connection.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Stecker | |
| Bemessungsspannung | 1000 V/600 V | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | Yes | |
| Durchmesser | 4 mm | |
| Farbe | rot | |
| Kontaktoberfläche | vernickelt | |
| Länge | 56.4 mm | |
| Leiterquerschnitt | 2,5 mm² | |
| max. Kabeldurchmesser | 4.6 mm | |
| Messkategorie | CAT II, CAT III | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
