66.2025-24 | Stäubli Electrical Connectors
4 mm plug, screw connection, 2.5 mm², CAT II, CAT III, yellow, 66.2025-24
Unit Price (€ / pc.)
3.9151 € *
Available: 23 pcs.
Leadtime: 3 Weeks **
Total Price:
3.92 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9151 €
10 pcs.
3.4629 €
100 pcs.
3.0226 €
500 pcs.
2.9036 €
1000 pcs.
2.7013 €
*incl. VAT plus shipping costs
**Subject to prior sale

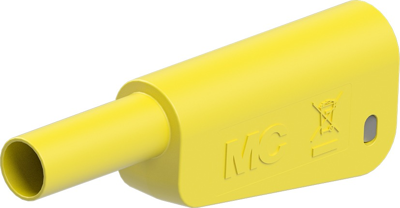

Single plug, 66.2025-24, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Gold plated version. Screw connection.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Stecker | |
| Bemessungsspannung | 1000 V/600 V | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | Yes | |
| Durchmesser | 4 mm | |
| Farbe | gelb | |
| Kontaktoberfläche | vergoldet | |
| Länge | 56.4 mm | |
| Leiterquerschnitt | 2,5 mm² | |
| max. Kabeldurchmesser | 4.6 mm | |
| Messkategorie | CAT II, CAT III | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 100 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
