66.2051-21 | Stäubli Electrical Connectors

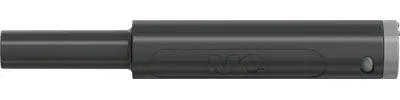

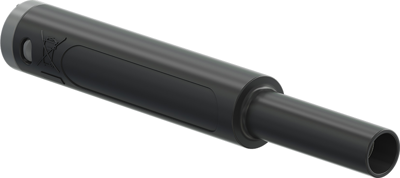

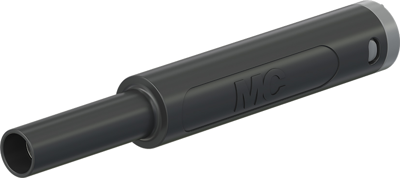

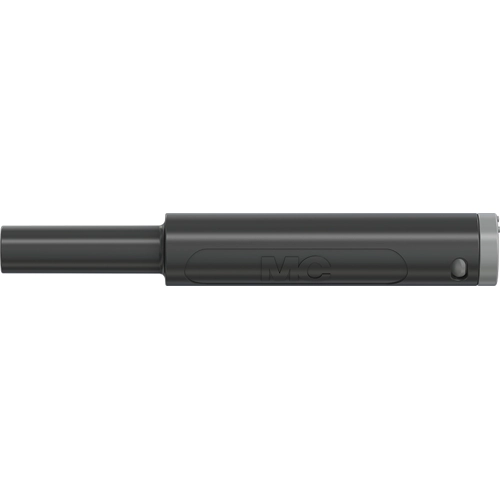

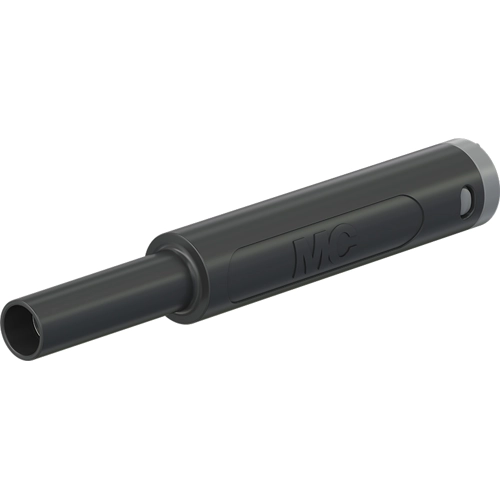

4 mm jack, solder connection, 2.5 mm², CAT II/CAT III, black, 66.2051-21
Unit Price (€ / pc.)
2.5704 € *
Available: 96 pcs.
Leadtime: 4 Weeks **
Total Price:
2.57 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5704 €
10 pcs.
2.4395 €
50 pcs.
2.2967 €
100 pcs.
2.1658 €
500 pcs.
1.9635 €
*incl. VAT plus shipping costs
**Subject to prior sale
Safety socket, 66.2051-21, Stäubli Electrical Connectors
In-line, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve, for self-assembly of test leads. Solder connection.
Technical specifications
| Connection | Lötanschluss | |
| Version | Kupplung | |
| Rated Voltage | 1000 V/600 V | |
| Rated current | 32 A | |
| diameter | 4 mm | |
| Colour | schwarz | |
| contact surface | vergoldet | |
| Length | 65 mm | |
| Cable cross-section | 2,5 mm² | |
| max. Cable diameter | 3.9 mm | |
| Rated category | CAT II/CAT III | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
