66.3020-21 | Stäubli Electrical Connectors
4 mm panel socket, threaded bolt, mounting Ø 12.1 mm, CAT III, CAT IV, black, 66.3020-21
Unit Price (€ / pc.)
2.5347 € *
Available: 26 pcs.
Leadtime: 4 Weeks **
Total Price:
2.53 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5347 €
20 pcs.
2.3324 €
100 pcs.
2.1896 €
500 pcs.
2.0468 €
1000 pcs.
1.9159 €
*incl. VAT plus shipping costs
**Subject to prior sale

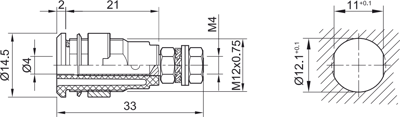

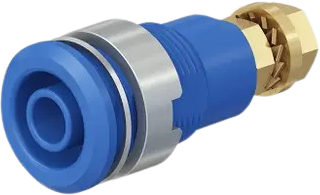

Panel-mount socket, 66.3020-21, Stäubli Electrical Connectors
The 66.3020-21 is a panel-mount socket accepting spring-loaded Ø 4 mm plug with rigid insulating sleeve. The socket is screwed into pre-drilled panels of plastic, metal, etc.
Technical specifications
| Anschluss | Gewindebolzen | |
| Ausführung | Einbaubuchse | |
| Bemessungsspannung | 1000 V/600 V | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | No | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 12.1 mm | |
| Farbe | schwarz | |
| Kontaktoberfläche | vergoldet | |
| Länge | 33 mm | |
| Messkategorie | CAT III, CAT IV | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
