66.7043-23 | Stäubli Electrical Connectors
4 mm panel socket, threaded bolt, mounting Ø 12.1 mm, CAT III, CAT IV, blue, 66.7043-23
Unit Price (€ / pc.)
1.4399 € *
Available: 0 pcs.
Next delivery: 20 pcs. on 2025-04-08
Leadtime: 5 Weeks **
Total Price:
1.44 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4399 €
20 pcs.
1.3209 €
100 pcs.
1.2495 €
500 pcs.
1.1662 €
1000 pcs.
1.0948 €
*incl. VAT plus shipping costs
**Subject to prior sale

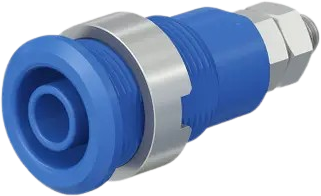

Panel-mount socket, 66.7043-23, Stäubli Electrical Connectors
The 66.7043-23 is a panel-mount socket accepting spring-loaded Ø 4 mm plug with rigid insulating sleeve. The socket is screwed into pre-drilled panels of plastic, metal, etc.
Technical specifications
| Connection | Gewindebolzen | |
| Version | Einbaubuchse | |
| Rated Voltage | 1000 V/600 V | |
| Rated current | 32 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Installation diameter | 12.1 mm | |
| Colour | blau | |
| contact surface | vernickelt | |
| Length | 33 mm | |
| Rated category | CAT III, CAT IV | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
