66.7049-25 | Stäubli Electrical Connectors

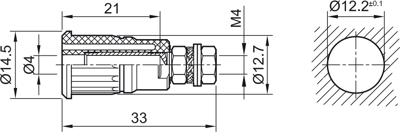

4 mm panel socket, threaded bolt, mounting Ø 12.2 mm, CAT III, CAT IV, green, 66.7049-25
Unit Price (€ / pc.)
1.3090 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.31 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3090 €
20 pcs.
1.2019 €
100 pcs.
1.1305 €
500 pcs.
1.0591 €
1000 pcs.
0.9877 €
*incl. VAT plus shipping costs
**Subject to prior sale
Press-in socket, 66.7049-25, Stäubli Electrical Connectors
The 66.7049-25 is a press-in socke accepting spring-loaded Ø 4 mm plug with rigid insulating sleeve. The socket is pressed into pre-drilled panels of plastic, metal, etc.
Technical specifications
| Anschluss | Gewindebolzen | |
| Ausführung | Einbaubuchse | |
| Bemessungsspannung | 1000 V/600 V | |
| Bemessungsstrom | 24 A | |
| Berührungssicher | No | |
| Durchmesser | 4 mm | |
| Einbaudurchmesser | 12.2 mm | |
| Farbe | grün | |
| Kontaktoberfläche | vernickelt | |
| Länge | 33 mm | |
| Messkategorie | CAT III, CAT IV | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
