66.7050-23 | Stäubli Electrical Connectors
4 mm panel socket, solder connection, mounting Ø 12.1 mm, CAT III, CAT IV, blue, 66.7050-23
Unit Price (€ / pc.)
1.8326 € *
Available: 10 pcs.
Leadtime: 5 Weeks **
Total Price:
1.83 € *
Price list
Quantity
Price per unit*
1 pcs.
1.8326 €
20 pcs.
1.6898 €
100 pcs.
1.5946 €
500 pcs.
1.4875 €
1000 pcs.
1.3804 €
*incl. VAT plus shipping costs
**Subject to prior sale

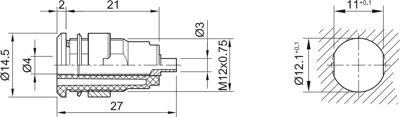

Press-in socket, 66.7050-23, Stäubli Electrical Connectors
The 66.7050-23 is a panel-mount socket accepting spring-loaded Ø 4 mm plug with rigid insulating sleeve. The socket is screwed into pre-drilled panels of plastic, metal, etc.
Technical specifications
| Connection | Lötanschluss | |
| Version | Einbaubuchse | |
| Rated Voltage | 1000 V/600 V | |
| Rated current | 24 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Installation diameter | 12.1 mm | |
| Colour | blau | |
| contact surface | vergoldet | |
| Length | 27 mm | |
| Rated category | CAT III, CAT IV | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
