66.9040-24 | Stäubli Electrical Connectors
4 mm socket, solder connection, CAT III, yellow, 66.9040-24
Discontinued
Unit Price (€ / pc.)
3.9508 € *
Available: 36 pcs.
Leadtime: 12 Weeks **

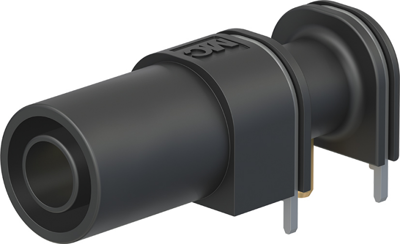

4 mm socket, 66.9040-24, Stäubli Electrical Connectors
Insulated, right-angled Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. Connection: Ø 2 mm round pin and contacts for mounting on printed-circuit boards.
Technical specifications
| Connection | solder connection | |
| Version | socket | |
| Rated Voltage | 1000 V | |
| Rated current | 24 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Colour | yellow | |
| contact surface | gold-plated | |
| Length | 33 mm | |
| Rated category | CAT III | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
