66.9155-25 | Stäubli Electrical Connectors
4 mm socket, screw connection, 2.5 mm², CAT II, green, 66.9155-25
Vom Hersteller nicht mehr lieferbar
Unit Price (€ / pc.)
2.7251 € *
Available: 20 pcs.
Leadtime: 1 Week **
Total Price:
2.73 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7251 €
25 pcs.
2.4038 €
100 pcs.
2.1063 €
500 pcs.
2.0230 €
1000 pcs.
1.8921 €
*incl. VAT plus shipping costs
**Subject to prior sale

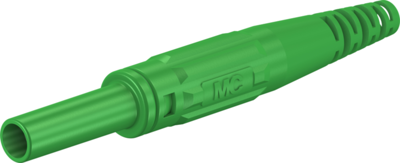

4 mm Socket, 66.9155-25, Stäubli Electrical Connectors
In-line, rigid, Ø 4 mm, accepting spring loaded Ø 4 mm plugs with rigid insulating sleeve, for self-assembly of test leads. Screw connection.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Buchse | |
| Bemessungsspannung | 1000 V | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | Yes | |
| Durchmesser | 4 mm | |
| Farbe | grün | |
| Kontaktoberfläche | vernickelt | |
| Länge | 73 mm | |
| Leiterquerschnitt | 2,5 mm² | |
| max. Kabeldurchmesser | 3.9 mm | |
| Messkategorie | CAT II | |
| Stapelbar | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
