66.9328-27 | Stäubli Electrical Connectors
4 mm plug, screw connection, 2.5 mm², CAT II, brown, 66.9328-27
Unit Price (€ / pc.)
5.8786 € *
Available: 30 pcs.
Leadtime: 1 Week **
Total Price:
5.88 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8786 €
25 pcs.
5.1527 €
100 pcs.
4.5220 €
500 pcs.
4.3673 €
1000 pcs.
4.0698 €
*incl. VAT plus shipping costs
**Subject to prior sale

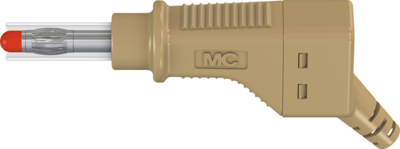

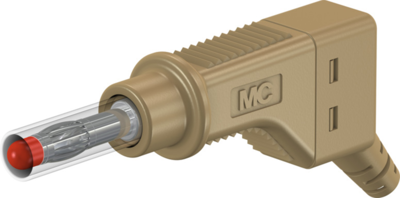

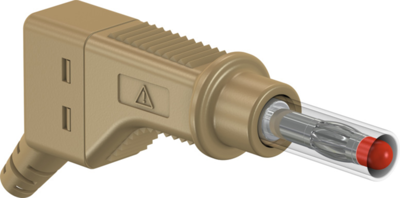

4 mm Plug, 66.9328-27, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With retractable sleeve to prevent accidental touching. Screw connection.
Technical specifications
| Anschluss | Schraubanschluss | |
| Ausführung | Stecker | |
| Bemessungsspannung | 600 V | |
| Bemessungsstrom | 32 A | |
| Berührungssicher | Yes | |
| Durchmesser | 4 mm | |
| Farbe | braun | |
| Kontaktoberfläche | vernickelt | |
| Länge | 59 mm | |
| Leiterquerschnitt | 2,5 mm² | |
| max. Kabeldurchmesser | 3.9 mm | |
| Messkategorie | CAT II | |
| Stapelbar | Yes |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
