66.9427-22 | Stäubli Electrical Connectors

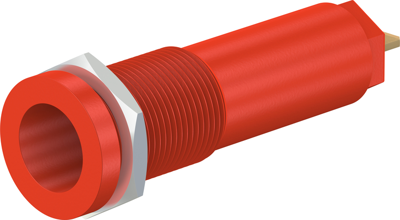

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT IV, red, 66.9427-22
Unit Price (€ / pc.)
7.2471 € *
Available: 61 pcs.
Leadtime: 1 Week **
Total Price:
7.25 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2471 €
10 pcs.
6.3784 €
100 pcs.
5.6049 €
500 pcs.
5.3788 €
1000 pcs.
5.0337 €
*incl. VAT plus shipping costs
**Subject to prior sale
4 mm Socket, 66.9427-22, Stäubli Electrical Connectors
Insulated, rigid Ø 4 mm socket for high voltages, to accept test leads XHM-5000 and XHL-5000. Mounted by screwing into panels or housings of plastic, metal etc. For safety reasons, the socket is not compatible with any other Ø 4 mm plugs in our range.
Connection: Flat connecting tab 4.8 mm x 0.8 mm.
Technical specifications
| Connection | flat plug connection | |
| Version | socket | |
| Rated Voltage | 1000 V | |
| Rated current | 10 A | |
| Touch safe | No | |
| diameter | 4 mm | |
| Installation diameter | 12.2 mm | |
| Colour | red | |
| contact surface | gold-plated | |
| Length | 48.2 mm | |
| Rated category | CAT IV |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
