66.9427-23 | Stäubli Electrical Connectors

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT IV, blue, 66.9427-23

Order No.: 25F2028
EAN: 4099889671612
MPN:
66.9427-23
XHB-5000 BLAU
Series: XHB-5000
Stäubli Electrical Connectors

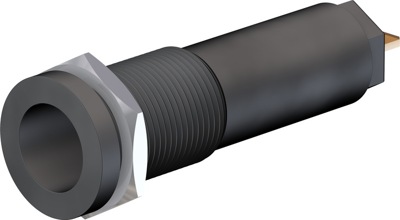

66.9427-23 Stäubli Electrical Connectors Laboratory Connectors Image 1
66.9427-23 Stäubli Electrical Connectors Laboratory Connectors Image 2
Image may differ
Unit Price (€ / pc.)
7.2471 € *
Available: 20 pcs.
Leadtime: On Request **
Total Price:
7.25 € *
Price list
Quantity
Price per unit*
1 pcs.
7.2471 €
10 pcs.
6.3784 €
100 pcs.
5.6049 €
500 pcs.
5.3788 €
1000 pcs.
5.0337 €
*incl. VAT plus shipping costs
**Subject to prior sale

4 mm Socket, 66.9427-23, Stäubli Electrical Connectors

Insulated, rigid Ø 4 mm socket for high voltages, to accept test leads XHM-5000 and XHL-5000. Mounted by screwing into panels or housings of plastic, metal etc. For safety reasons, the socket is not compatible with any other Ø 4 mm plugs in our range.

Connection: Flat connecting tab 4.8 mm x 0.8 mm.

Technical specifications
Connection flat plug connection
Version socket
Rated Voltage 1000 V
Rated current 10 A
Touch safe No
diameter 4 mm
Installation diameter 12.2 mm
Colour blue
contact surface gold-plated
Length 48.2 mm
Rated category CAT IV
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
