66.9584-22 | Stäubli Electrical Connectors
4 mm plug, screw connection, 2.5 mm², CAT II, red, 66.9584-22
Unit Price (€ / pc.)
5.0099 € *
Available: 32 pcs.
Leadtime: 2 Weeks **
Total Price:
5.01 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0099 €
25 pcs.
4.4149 €
50 pcs.
3.8675 €
100 pcs.
3.7128 €
500 pcs.
3.4867 €
*incl. VAT plus shipping costs
**Subject to prior sale

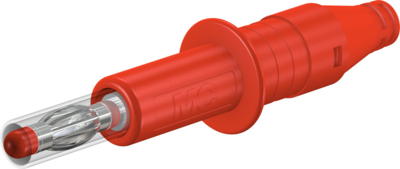

4 mm Plug, 66.9584-22, Stäubli Electrical Connectors
In-line Ø 4 mm plug with spring-loaded MULTILAM for selfassembly of test leads. With retractable sleeve to prevent accidental touching. As a result of the protective collar, the clearances and creepage distances allow test leads equipped with this plug also to be safely connected to older test instruments not yet fi tted with safety sockets up to 600 V, CAT II in conformity with the standards.
Connection: Screw connection
Technical specifications
| Connection | screw connection | |
| Version | plug | |
| Rated Voltage | 600 V | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Colour | red | |
| contact surface | nickel-plated | |
| Length | 71 mm | |
| Cable cross-section | 2.5 mm² | |
| max. Cable diameter | 3.9 mm | |
| Rated category | CAT II | |
| Stackable | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
