66.9665-23 | Stäubli Electrical Connectors

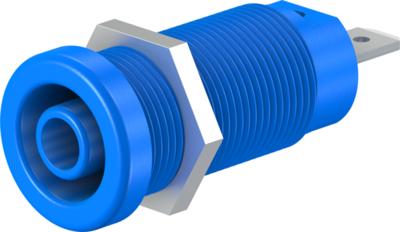

4 mm socket, flat plug connection, mounting Ø 12.2 mm, CAT IV, blue, 66.9665-23

Order No.: 86F9000
EAN: 4099889679465
MPN:
66.9665-23
XEF-1R BLAU
Series: XES-1R
Stäubli Electrical Connectors
66.9665-23 Stäubli Electrical Connectors Laboratory Connectors
Image may differ
Unit Price (€ / pc.)
2.9393 € *
Available: 33 pcs.
Leadtime: 3 Weeks **
Total Price:
2.94 € *
Price list
Quantity
Price per unit*
1 pcs.
2.9393 €
25 pcs.
2.5942 €
100 pcs.
2.4514 €
500 pcs.
2.3681 €
1000 pcs.
2.2253 €
*incl. VAT plus shipping costs
**Subject to prior sale

4 mm Socket, 66.9665-23, Stäubli Electrical Connectors

Insulated, rigid, Ø 4 mm, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Machined brass. The socket is screwed into predrilled panels of plastic, metal, etc.

Connection: Flat connencting tab 4.8 mm × 0.8 mm

Technical specifications
Connection flat plug connection
Version socket
Rated Voltage 1000 V
Rated current 24 A
Touch safe Yes
diameter 4 mm
Installation diameter 12.2 mm
Colour blue
contact surface nickel-plated
Length 37 mm
Rated category CAT IV
Stackable No
Logistics
Country of origin DE
Customs tariff number 85369010
Original Packaging Bag with 25 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
