66.9706-22 | Stäubli Electrical Connectors
4 mm plug, screw connection, 2.5 mm², CAT II, red, 66.9706-22
As an alternative, we recommend the following item:
4 mm plug, screw connection, 2.5 mm², CAT II, CAT III, red, 66.2024-22
Order No.: 22F7168
Manufacturer: Stäubli Electrical Connectors
per pc. 3.0583 € *
*incl. VAT plus shipping costs

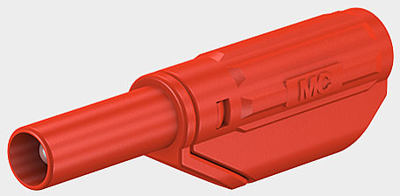

4 mm Plug, 66.9706-22, Stäubli Electrical Connectors
Stackable, Ø 4 mm, with spring-loaded MULTILAM, for self-assembly of test leads. With rigid insulating sleeve. Screw connection.
Technical specifications
| Connection | screw connection | |
| Version | plug | |
| Rated Voltage | 600 V | |
| Rated current | 32 A | |
| Touch safe | Yes | |
| diameter | 4 mm | |
| Colour | red | |
| contact surface | nickel-plated | |
| Length | 58 mm | |
| Cable cross-section | 2.5 mm² | |
| max. Cable diameter | 3.9 mm | |
| Rated category | CAT II | |
| Stackable | Yes |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
