23.5201 | Stäubli Electrical Connectors
Uninsulated flat plug sleeve, 4.8 x 0.8 mm, 0.5 to 1.0 mm², AWG 22 to 18, 23.5201
Order No.: 05F513
EAN: 4099889618402
MPN:
23.5201
FSH4,8X0,8
Unit Price (€ / pc.)
0.3927 € *
Available: 1,899 pcs.
Leadtime: On Request **
Total Price:
0.39 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3927 €
10 pcs.
0.3451 €
100 pcs.
0.3094 €
500 pcs.
0.2916 €
1000 pcs.
0.2689 €
*incl. VAT plus shipping costs
**Subject to prior sale

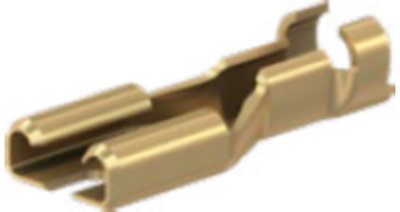

Receptacle, 23.5201, STÄUBLI
Flat connecting Receptacle according to EN 61210, gold-plated, for sockets with flat connecting tabs.
Technical Data
- AWG conductor cross-section AWG 22 to 18
- Material: gold-plated
- Length: 16,5 mm
- Isolation: No
Technical specifications
| Connection | crimp connection | |
| Version | flat plug sleeve | |
| AWG cross-section | AWG 22 to 18 | |
| Suitable for | 4.8 x 0.8 mm | |
| Isolated | No | |
| Length | 16.5 mm | |
| Cable cross-section | 0.5 to 1.0 mm² |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
