32.0010P0001-UR | Stäubli Electrical Connectors

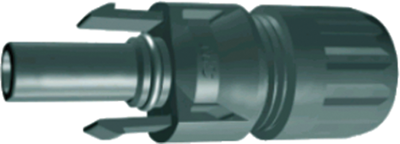

MC4 jack, 2.5 mm², cable Ø 5 to 6 mm, 1 kV, 22.5 A, 32.0010P0001-UR
Unit Price (€ / pc.)
3.8675 € *
Available: 24 pcs.
Leadtime: 2 Weeks **
Total Price:
3.87 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8675 €
10 pcs.
3.6414 €
50 pcs.
3.4034 €
100 pcs.
3.1773 €
500 pcs.
2.9274 €
*incl. VAT plus shipping costs
**Subject to prior sale
Photovoltaic connectors, 4.0 mm series MC4, type MC PV.
For time-saving and reliable cabling of PV modules for solar plants. Snap-in lock system and strain relief to DIN V VDE 0126-3; Rated voltage: 1000 V, CAT III. Rated current: 17 A (1.5 mm²), 22 A (2.5 mm²). Test voltage: 6.0 kV/50 Hz. Contact resistance: typically 0.5 mohm. Degree of soiling: 2. Safety class: II. Operating temperatures: - 40 to +90 °C. Temperature limit: +105 °C.
PV female jacks, 4.0 mm, type PV-KBT4.
With screwed cable gland; Contact material: tinned copper. Insulation: PC/PA, to UL 94 V-0. Degree of protection: IP 67.

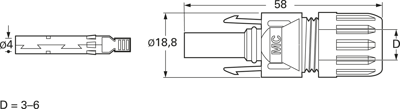

Technical attributes (type, for cable outer diameter (D), conductor cross-sections): PV - KBT4/2.5I - UR, D 3.0 to 6.0 mm, 1.5 to 2.5 mm²
Technical specifications
| Version | MC4 jack | |
| diameter | 4 mm | |
| Cable diameter | 5 to 6 mm | |
| Contact connection | crimp terminal open | |
| Cable cross-section | 2.5 mm² | |
| Rated voltage | 1 kV | |
| Rated current | 22.5 A |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
