32.0030 | Stäubli Electrical Connectors

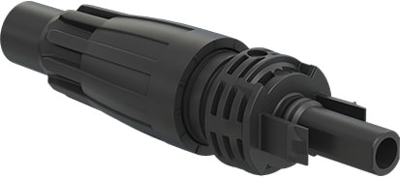

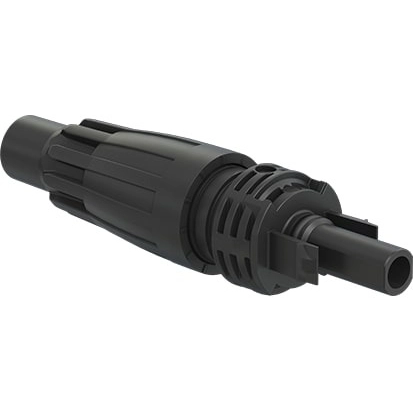

MC4-Evo jack, 4.0-6.0 mm², cable Ø 5.5-7.5 mm, 1.5 kV, 30 A, 32.0030
Unit Price (€ / pc.)
3.6890 € *
Available: 190 pcs.
Leadtime: 12 Weeks **
Total Price:
3.69 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6890 €
10 pcs.
3.4748 €
50 pcs.
3.2606 €
100 pcs.
3.0345 €
200 pcs.
2.8203 €
*incl. VAT plus shipping costs
**Subject to prior sale
MC4-Evo ready coupling socket, 32.0030, Stäubli Electrical Connectors
The 32.0030 is a tool-free cable connection: no crimping necessary, the contact is made by an automatically closing spring clamp. For cable cross sections of 4 mm² and 6 mm². No single parts, the connectors are complete and pre-screwed: insert the stripped PV lead, screw on the housing, done! To be used with suitable mated connectors from the MC4 product family and suitable lead.
Technical specifications
| Version | MC4-Evo jack | |
| Cable diameter | 5.5-7.5 mm | |
| Contact connection | spring-clamp connection | |
| Cable cross-section | 4.0-6.0 mm² | |
| Rated voltage | 1.5 kV | |
| Rated current | 30 A |
Download
Logistics
| Country of origin | RO |
| Customs tariff number | 85359000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
