32.0085P0001-UR | Stäubli Electrical Connectors
MC4-Evo 2 plug, 2.5 mm², cable Ø 6.4 to 8.4 mm, 1.5 kV, 39 A, 32.0085P0001-UR
As an alternative, we recommend the following item:
MC4-Evo 2 plug, 2.5 mm², cable Ø 6.4-8.4 mm, 1.5 kV, 39 A, 32.0315P0001
Order No.: 37F2035
Manufacturer: Stäubli Electrical Connectors
per pc. 3.2130 € *
*incl. VAT plus shipping costs

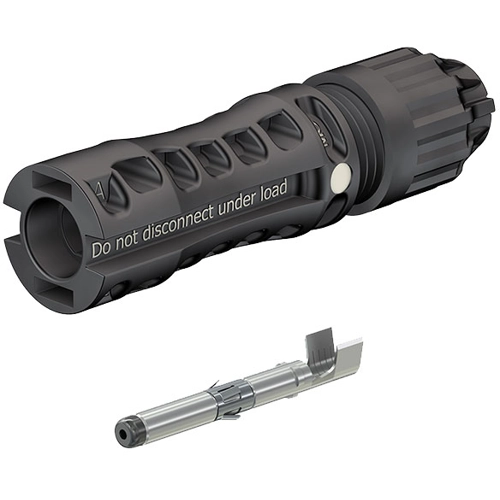

Photovoltaic coupler, 32.0085P0001-UR, Stäubli Electrical Connectors
MULTILAM Technology has proven the quality and durability and this coupler is suited for all climatic environments thanks to resistance to UV and ammonia.
It is available as a field and preassembled connector, standard crimping tools can be used.
Technical specifications
| Version | MC4-Evo 2 plug | |
| diameter | 4 mm | |
| Cable diameter | 6.4 to 8.4 mm | |
| Contact connection | crimp terminal open | |
| Cable cross-section | 2.5 mm² | |
| Rated voltage | 1.5 kV | |
| Rated current | 39 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85359000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
