32.0125P0001-UR | Stäubli Electrical Connectors

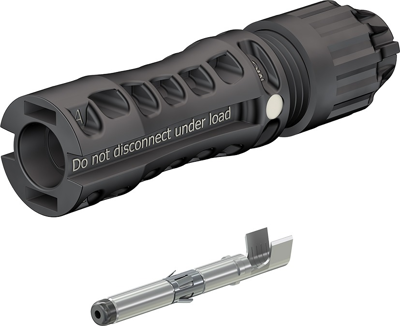

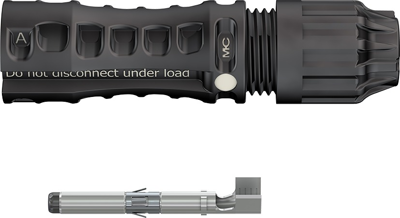

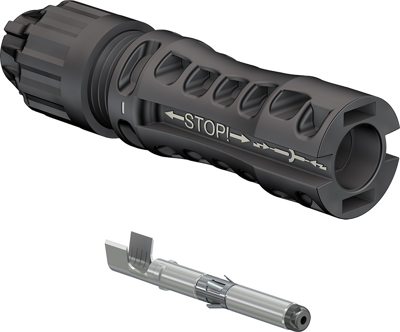

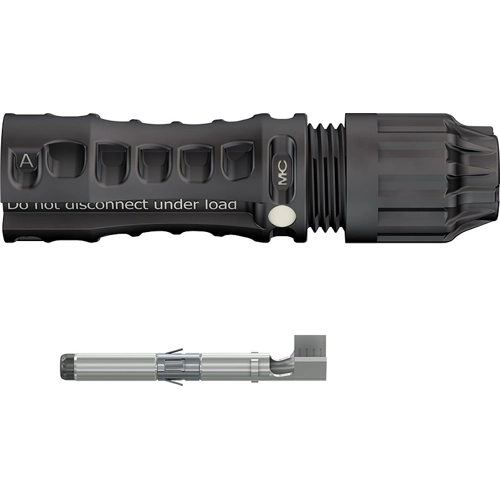

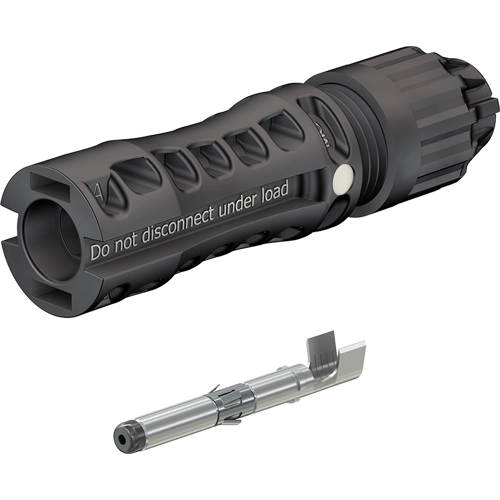

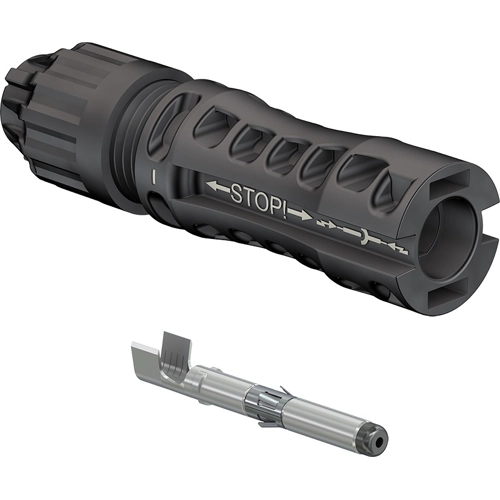

MC4-Evo 2 plug, 4.0-6.0 mm², cable Ø 6.1-7.3 mm, 1.5 kV, 45 A, 32.0125P0001-UR
As an alternative, we recommend the following item:
MC4-Evo 2 plug, 4.0-6.0 mm², cable Ø 6.1-7.3 mm, 1.5 kV, 45 A, 32.0319P0001
Order No.: 37F2039
Manufacturer: Stäubli Electrical Connectors
per pc. 3.2130 € *
*incl. VAT plus shipping costs
Coupling plug, 32.0125P0001-UR, Stäubli Electrical Connectors
Internationally certified with IEC, UL, JET, cTÜVus. Approved for DC 1500 V (IEC, JET), DC 1500 V (UL) unrestricted access. MULTILAM Technology, has proven the quality and durability several 100 million times since 2004. Suitable for all climatic environments due to UV, ammonia resistance and high IP class (IP68). Mating compatibility with MC4 connector family.
Technical specifications
| Version | MC4-Evo 2 plug | |
| diameter | 4 mm | |
| Cable diameter | 6.1-7.3 mm | |
| Contact connection | crimp terminal open | |
| Cable cross-section | 4.0-6.0 mm² | |
| Rated voltage | 1.5 kV | |
| Rated current | 45 A |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
