32.0262P0001 | Stäubli Electrical Connectors
MC4-Evo stor jack, 4.0-6.0 mm², cable Ø 4.7-6.4 mm, 1.5 kV, 42 A, 32.0262P0001
Unit Price (€ / pc.)
5.0932 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.09 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0932 €
10 pcs.
4.7838 €
50 pcs.
4.4744 €
100 pcs.
4.1650 €
500 pcs.
3.8556 €
*incl. VAT plus shipping costs
**Subject to prior sale

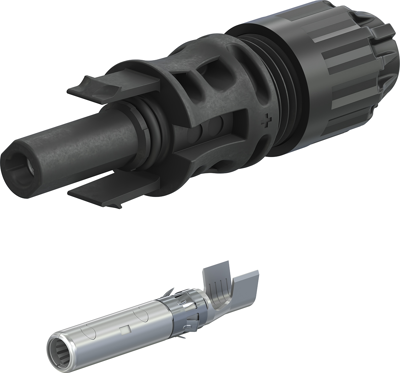

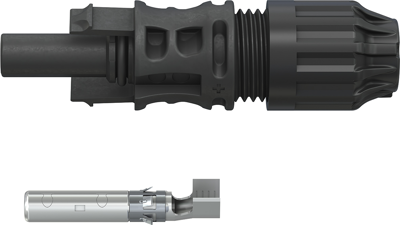

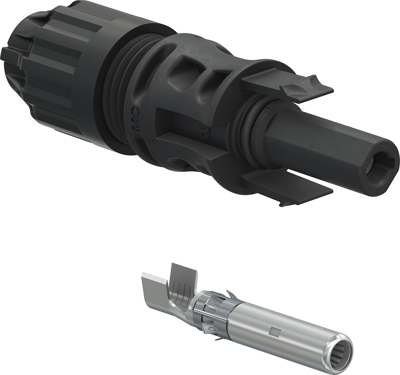

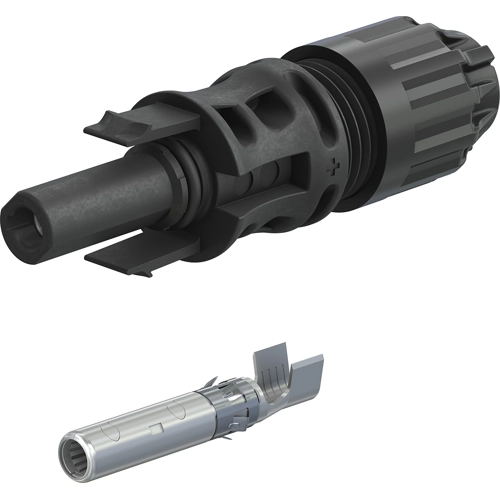

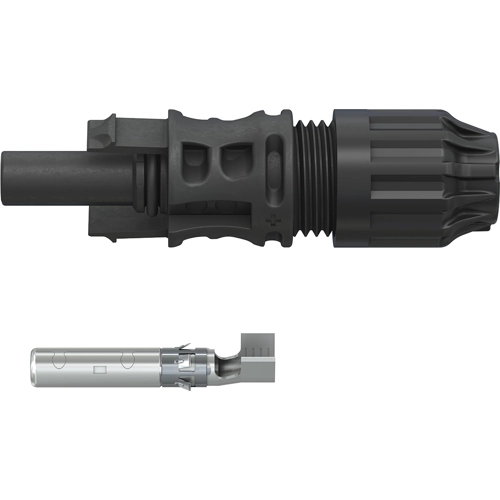

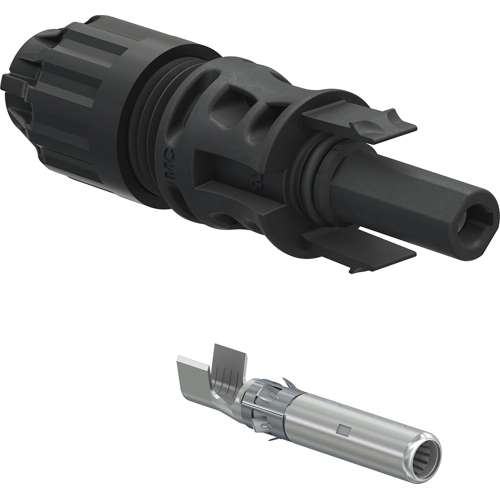

Coupling jack, 32.0262P0001, Stäubli Electrical Connectors
Is an application example with an inverter and a BESS (battery energy storage system). The MC4-Evo stor panel receptacle is integrated in both the inverter and the BESS: No missmatching error is possible on the DC side of the inverter.
Technical specifications
| Version | MC4-Evo stor jack | |
| diameter | 4 mm | |
| Cable diameter | 4.7-6.4 mm | |
| Contact connection | crimp terminal open | |
| Cable cross-section | 4.0-6.0 mm² | |
| Rated voltage | 1.5 kV | |
| Rated current | 42 A |
Download
Logistics
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
