32.0266P0001 | Stäubli Electrical Connectors

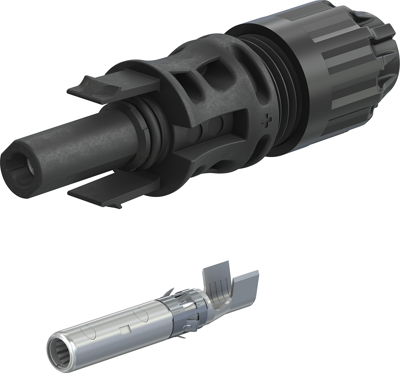

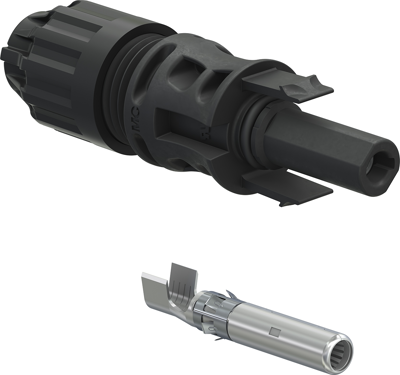

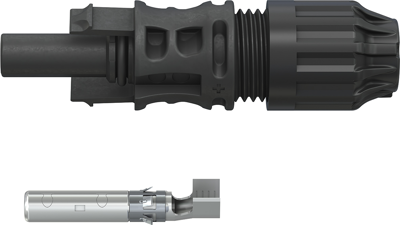

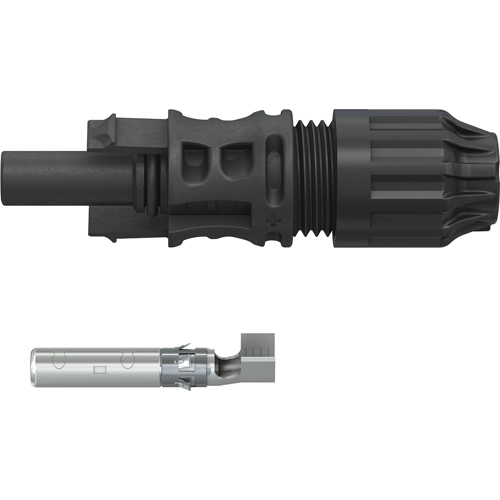

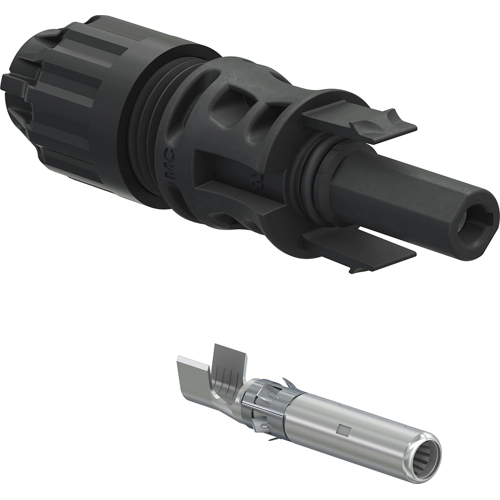

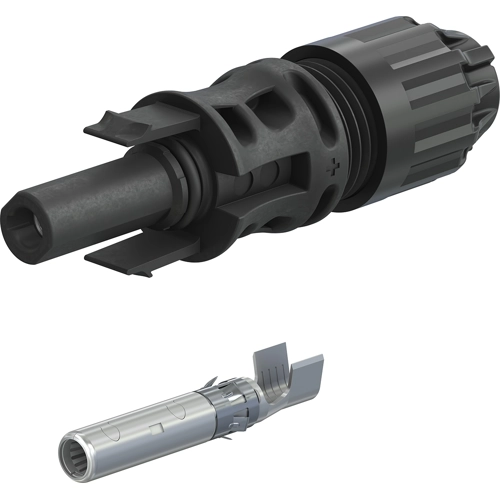

MC4-Evo stor jack, 4.0-6.0 mm², cable Ø 6.4-8.5 mm, 1.5 kV, 42 A, 32.0266P0001
Unit Price (€ / pc.)
5.0932 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
5.09 € *
Price list
Quantity
Price per unit*
1 pcs.
5.0932 €
10 pcs.
4.7838 €
50 pcs.
4.4744 €
100 pcs.
4.1650 €
500 pcs.
3.8556 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coupling jack, 32.0266P0001, Stäubli Electrical Connectors
Is an application example with an inverter and a BESS (battery energy storage system). The MC4-Evo stor panel receptacle is integrated in both the inverter and the BESS: No missmatching error is possible on the DC side of the inverter.
Technical specifications
| Ausführung | MC4-Evo stor Kupplung | |
| Durchmesser | 4 mm | |
| Kabeldurchmesser | 6,4-8,5 mm | |
| Kontaktanschluss | Crimpanschluss offen | |
| Leiterquerschnitt | 4,0-6,0 mm² | |
| Nennspannung | 1.5 kV | |
| Nennstrom | 42 A |
Download
Logistics
| Zolltarifnummer | 85389099 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
