32.0267P0001 | Stäubli Electrical Connectors

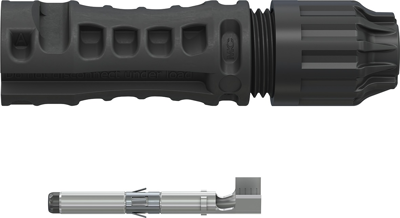

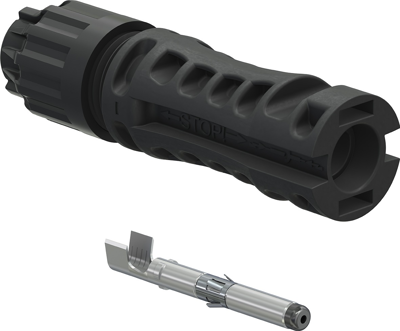

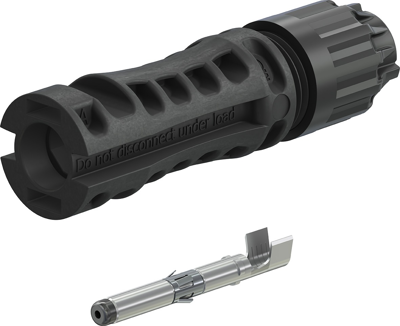

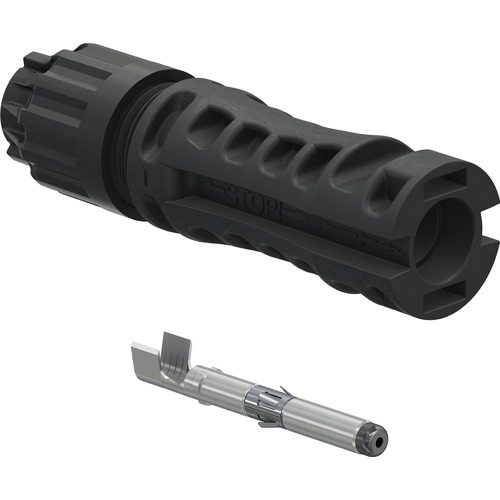

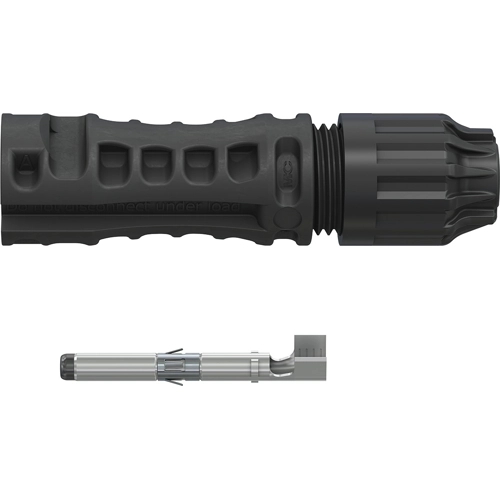

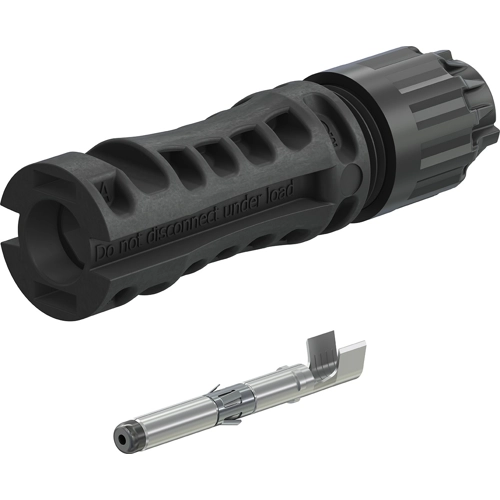

MC4-Evo stor plug, 4.0-6.0 mm², cable Ø 6.4-8.5 mm, 1.5 kV, 42 A, 32.0267P0001
Unit Price (€ / pc.)
3.8556 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3.86 € *
Price list
Quantity
Price per unit*
1 pcs.
3.8556 €
10 pcs.
3.6176 €
50 pcs.
3.3915 €
100 pcs.
3.1535 €
500 pcs.
2.9155 €
*incl. VAT plus shipping costs
**Subject to prior sale
Coupling plug, 32.0267P0001, Stäubli Electrical Connectors
Is an application example with an inverter and a BESS (battery energy storage system). The MC4-Evo stor panel receptacle is integrated in both the inverter and the BESS: No missmatching error is possible on the DC side of the inverter.
Technical specifications
| Version | MC4-Evo stor plug | |
| diameter | 4 mm | |
| Cable diameter | 6.4-8.5 mm | |
| Contact connection | crimp terminal open | |
| Cable cross-section | 4.0-6.0 mm² | |
| Rated voltage | 1.5 kV | |
| Rated current | 42 A |
Download
Logistics
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
