32.0323P0001 | Stäubli Electrical Connectors

Name: MC4-Evo 2 plug, 10 mm², cable Ø 6.1-7.3 mm, 1.5 kV, 69 A, 32.0323P0001
Brand: Stäubli Electrical Connectors
SKU: 37F2043
Price: 3.69 EUR
Availability: OutOfStock

MC4-Evo 2 plug, 10 mm², cable Ø 6.1-7.3 mm, 1.5 kV, 69 A, 32.0323P0001

Order No.: 37F2043

EAN: 4099891691899

MPN:

32.0323P0001

PV-KST4-EVO 2A/10X

Series: MC4-Evo2

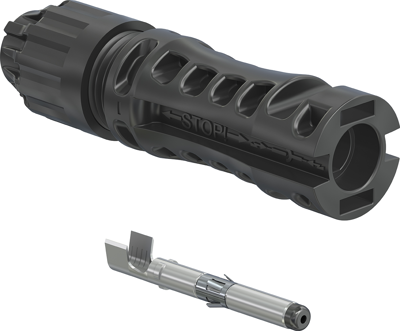

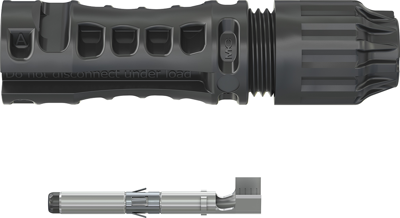

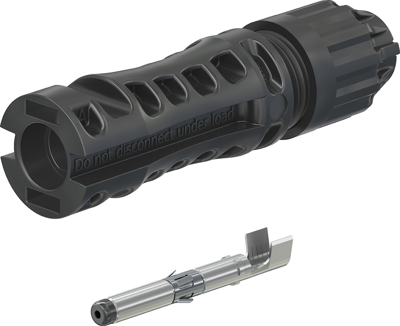

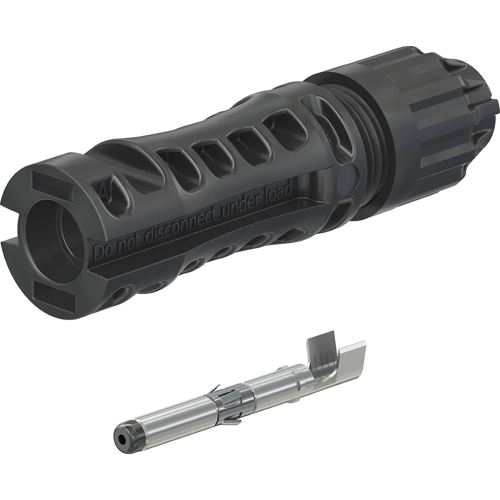

32.0323P0001 Stäubli Electrical Connectors Solar Connectors Image 1

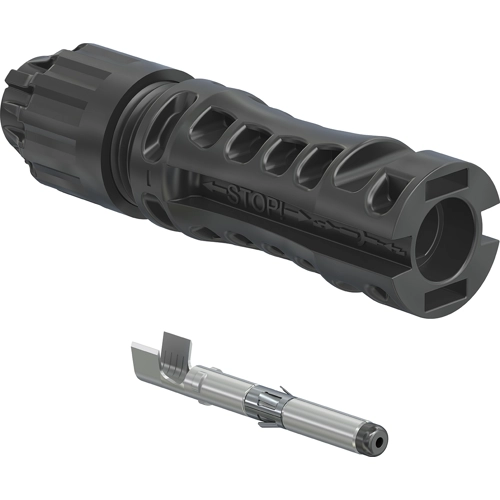

32.0323P0001 Stäubli Electrical Connectors Solar Connectors Image 2

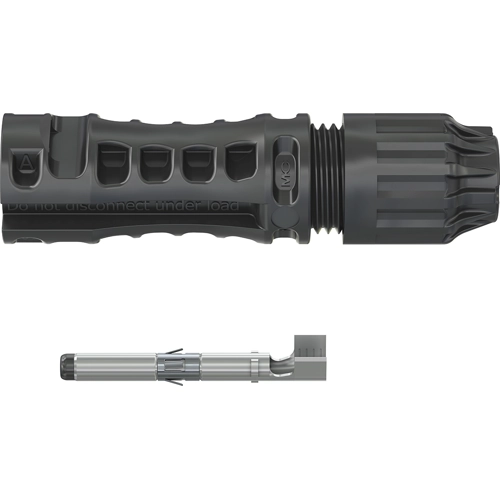

32.0323P0001 Stäubli Electrical Connectors Solar Connectors Image 3

Image may differ

Key Specification:

Ausführung MC4-Evo 2 Stecker

Durchmesser 4 mm

Leiterquerschnitt 10 mm²

Kabeldurchmesser 6,1-7,3 mm

Nennspannung 1.5 kV

Show 16 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

3.6890 € *

Available: 0 pcs.

Leadtime: On Request **

Total Price:

3.69 € *

Price list

Quantity

Price per unit*

1 pcs.

3.6890 €

10 pcs.

3.4748 €

50 pcs.

3.2487 €

100 pcs.

3.0345 €

500 pcs.

2.7965 €

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Coupling plug, 32.0323P0001, Stäubli Electrical Connectors

Suitable for all climatic environments due to UV, ammonia resistance and high IP class (IP68). Mating compatibility with MC4 connector family.

Technical specifications

	Ausführung	MC4-Evo 2 Stecker
	Durchmesser	4 mm
	Kabeldurchmesser	6,1-7,3 mm
	Kontaktanschluss	Crimpanschluss offen
	Leiterquerschnitt	10 mm²
	Nennspannung	1.5 kV
	Nennstrom	69 A

Show similar products 0

Download

Technisches Datenblatt - EN Technisches Datenblatt

Konformitätsdeklaration - EN Konformitätsdeklaration

Konformitätsdeklaration - DE Konformitätsdeklaration

Logistics

Ursprungsland	FR
Zolltarifnummer	85389099

Compliance

RoHS konform	Yes
Stand der RoHS-Richtlinie	3/31/15
SVHC frei	Yes
