32.0347P0001 | Stäubli Electrical Connectors
MC4-Evo 2 surface mount plug, 4.0-6.0 mm², 1.5 kV, 42 A, 32.0347P0001
Unit Price (€ / pc.)
4.1174 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
4.12 € *
Price list
Quantity
Price per unit*
1 pcs.
4.1174 €
10 pcs.
3.8675 €
50 pcs.
3.6295 €
100 pcs.
3.3796 €
500 pcs.
3.1297 €
*incl. VAT plus shipping costs
**Subject to prior sale

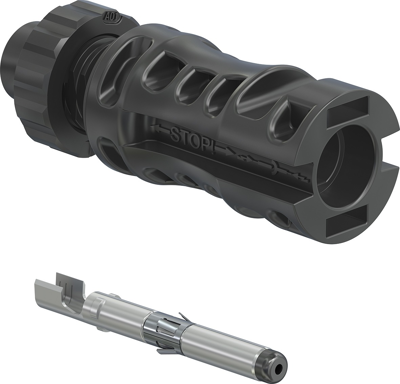

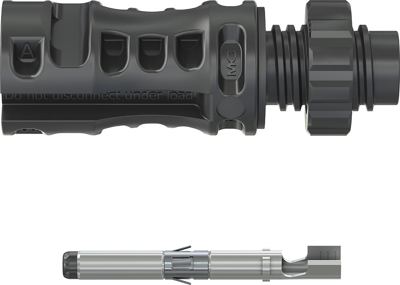

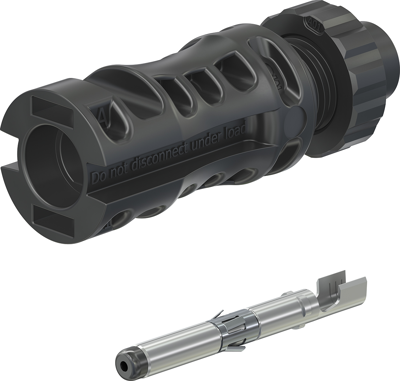

Mounting plug, 32.0347P0001, Stäubli Electrical Connectors
This assembly is made directly via the threads or in the perforated plate with the plastic nut. Thanks to the D-shape thread the connection is secured against twisting. This degree of protection (IP68) guarantees highest connection safety, fast and clean connection with preassembled flat seal. Plug compatible with the original MC4 plug connector family.
Technical specifications
| Version | MC4-Evo 2 surface mount plug | |
| diameter | 4 mm | |
| Contact connection | crimp terminal open | |
| Cable cross-section | 4.0-6.0 mm² | |
| Rated voltage | 1.5 kV | |
| Rated current | 42 A |
Download
Logistics
| Customs tariff number | 85389099 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
