20.0159-24 | Stäubli Electrical Connectors
Adapter, 2 mm socket to 2 mm plug, yellow, 20.0159-24
Unit Price (€ / pc.)
2.8203 € *
Available: 0 pcs.
Leadtime: 4 Weeks **
Total Price:
2.82 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8203 €
25 pcs.
2.5942 €
50 pcs.
2.4395 €
100 pcs.
2.2967 €
500 pcs.
2.1420 €
*incl. VAT plus shipping costs
**Subject to prior sale

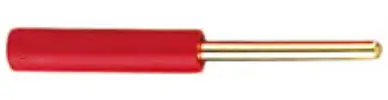

Touch-proof adapter, 20.0159-24, Stäubli Electrical Connectors
This adapter is made of gold-plated brass that can be screw-mounted into rigid Ø 2 mm sockets. By tightening an internal screw, the Ø 2 mm plug of this adapter expands by tightening an internal screw so that it sits firmly in the socket and provides full contact protection when fitted. The Ø 2 mm socket with spring-loaded contact lamella in the insulating body is suitable for rigid Ø 2 mm plugs with rigid insulating sleeve.
Technical specifications
| Ausführung | Adapter | |
| Farbe | gelb | |
| Kontaktoberfläche | vergoldet | |
| Seite (1) | 2 mm Buchse | |
| Seite (2) | 2 mm Stecker |
Download
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
