22.5163-22 | Stäubli Electrical Connectors

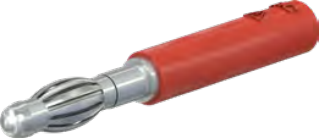

Adapter, 4 mm plug to 4 mm socket, red, CAT II, 22.5163-22
Unit Price (€ / pc.)
1.6541 € *
Available: 0 pcs.
Next delivery: 20 pcs. on 2025-01-15
Leadtime: 5 Weeks **
Total Price:
1.65 € *
Price list
Quantity
Price per unit*
1 pcs.
1.6541 €
25 pcs.
1.4042 €
100 pcs.
1.3090 €
500 pcs.
1.2257 €
1000 pcs.
1.1305 €
*incl. VAT plus shipping costs
**Subject to prior sale
Adapter for laboratory connector, 22.5163-22, Stäubli Electrical Connectors
Ø 4 mm plug, made of brass, with spring-loaded MULTILAM. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
Technical Data
- Version: Plug adapter
- Colour: red
- Rated voltage: 30 VAC/60 VDC
- Rated current: 30 A
Technical specifications
| Version | adapter | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 30 A | |
| Colour | red | |
| contact surface | nickel-plated | |
| Rated category | CAT II | |
| Site (1) | 4 mm plug | |
| Site (2) | 4 mm socket |
Download
Logistics
| Country of origin | CH |
| Customs tariff number | 85369010 |
| Original Packaging | Bag with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
