24.0100-21 | Stäubli Electrical Connectors

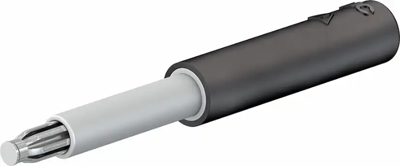

Test plug adapter, 2.3 mm plug to 4 mm socket, black, 24.0100-21
Unit Price (€ / pc.)
5.2003 € *
Available: 15 pcs.
Next delivery: 50 pcs. on 2025-01-08
Leadtime: 4 Weeks **
Total Price:
5.20 € *
Price list
Quantity
Price per unit*
1 pcs.
5.2003 €
25 pcs.
4.8909 €
50 pcs.
4.5934 €
100 pcs.
4.3078 €
500 pcs.
4.0103 €
*incl. VAT plus shipping costs
**Subject to prior sale
Test plug, 24.0100-21, Stäubli Electrical Connectors
This plug is made of silver-plated brass with spring-loaded MULTILAM, suitable for installation terminals with threaded holes M3. The Ø 4 mm rigid socket in insulator accepts spring-loaded Ø 4 mm plugs with rigid insulating sleeve.
Technical specifications
| Version | test plug adapter | |
| Rated Voltage | 30 VAC/60 VDC | |
| Rated current | 25 A | |
| Colour | black | |
| contact surface | silver-plated | |
| Site (1) | 2.3 mm plug | |
| Site (2) | 4 mm socket |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
