24.0160-27 | Stäubli Electrical Connectors

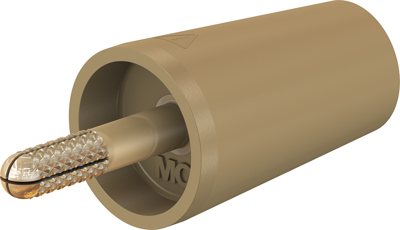

Screw-clamping adapter, 4 mm plug, spreadable to 4 mm socket, brown, CAT II, 24.0160-27

Order No.: 84F506
EAN: 4099889684889
MPN:
24.0160-27
A-SLK4 BRAUN
Series: A-SLK4
Stäubli Electrical Connectors
24.0160-27 Stäubli Electrical Connectors T&M Adapters
Image may differ
Unit Price (€ / pc.)
4.9266 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
4.93 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9266 €
25 pcs.
4.3554 €
100 pcs.
4.0936 €
500 pcs.
3.9627 €
1000 pcs.
3.7128 €
*incl. VAT plus shipping costs
**Subject to prior sale

Adapter, 24.0160-27, Stäubli Electrical Connectors Electrical Connectors

Brass adapter for screwing into Ø 4 mm sockets. By tightening an internal screw, the Ø 4 mm plug of this adapter expands so that it is firmly seated in the socket and offers full contact protection when mounted. Rigid Ø 4 mm socket in the insulating body, suitable for receiving spring-loaded Ø 4 mm plugs with rigid insulating sleeve.

Technical specifications
Version screw-clamping adapter
Rated Voltage 1000 V
Rated current 32 A
Colour brown
contact surface gold-plated
Rated category CAT II
Site (1) 4 mm plug, spreadable
Site (2) 4 mm socket
Logistics
Country of origin CH
Customs tariff number 85369010
Original Packaging Bag with 25 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Lead
