66.9076-22 | Stäubli Electrical Connectors

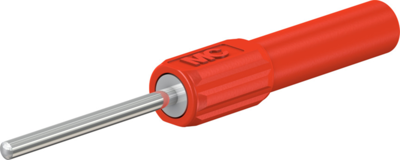

Counting test adapter, connecting pin 2 mm to 4 mm socket, red, CAT II, 66.9076-22
Unit Price (€ / pc.)
3.1178 € *
Available: 56 pcs.
Leadtime: On Request **
Total Price:
3.12 € *
Price list
Quantity
Price per unit*
1 pcs.
3.1178 €
10 pcs.
2.7489 €
50 pcs.
2.4038 €
100 pcs.
2.3086 €
500 pcs.
2.1182 €
*incl. VAT plus shipping costs
**Subject to prior sale
Adapter for laboratory connector, 66.9076-22, Stäubli Electrical Connectors
Solid round brass pins especially suitable for the screw connection to electricity meter clips. Ø 4 mm rigid socket in insulator, accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Available in different pin diameters D and lengths L.
Technical Data
- Version: Connecting pin adapter
- Colour: red
- Rated voltage: 600 V
- Rated current: 19 A
Technical specifications
| Ausführung | Zählprüf-Adapter | |
| Bemessungsspannung | 600 V | |
| Bemessungsstrom | 19 A | |
| Farbe | rot | |
| Kontaktoberfläche | vernickelt | |
| Messkategorie | CAT II | |
| Seite (1) | Anschlussstift 2 mm | |
| Seite (2) | 4 mm Buchse |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85369010 |
| Originalverpackung | Beutel mit 50 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | No |
| Substanz Beschreibung | Blei |
