66.9515-22 | Stäubli Electrical Connectors

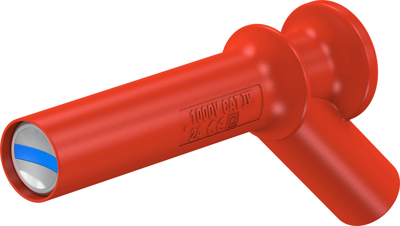

Magnetic adapter, 11 mm magnetic head to 4 mm socket, red, CAT IV, 66.9515-22
Unit Price (€ / pc.)
20.7893 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
20.79 € *
Price list
Quantity
Price per unit*
1 pcs.
20.7893 €
5 pcs.
19.0162 €
10 pcs.
17.8262 €
50 pcs.
16.6362 €
100 pcs.
15.4343 €
*incl. VAT plus shipping costs
**Subject to prior sale
Magnetic adapter, 66.9515-22, Stäubli Electrical Connectors
Made of brass for permanent installation, for example, for connecting screw terminals. Ø 4 mm rigid socket in insulator accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Fork lug bent to an angle of 45°. Color: red.
Technical specifications
| Version | Magnetadapter | |
| Rated Voltage | 1000 V | |
| Rated current | 2 A | |
| Colour | rot | |
| contact surface | vernickelt | |
| Rated category | CAT IV | |
| Site (1) | 11 mm Magnetkopf | |
| Site (2) | 4 mm Buchse |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Blei |
