66.9694-22 | Stäubli Electrical Connectors

Angle plug adapter, 4 mm plug to 4 mm socket, red, CAT II, 66.9694-22

Order No.: 86F8011
EAN: 842640118635
MPN:
66.9694-22
XWA-4/19 ROT
66.9694-22 Stäubli Electrical Connectors T&M Adapters
Image may differ
Unit Price (€ / pc.)
4.9028 € *
Available: 31 pcs.
Leadtime: 4 Weeks **
Total Price:
4.90 € *
Price list
Quantity
Price per unit*
1 pcs.
4.9028 €
10 pcs.
4.3197 €
50 pcs.
3.7723 €
100 pcs.
3.6295 €
500 pcs.
3.4034 €
*incl. VAT plus shipping costs
**Subject to prior sale

Adapter for laboratory connector, 66.9694-22, Stäubli Electrical Connectors

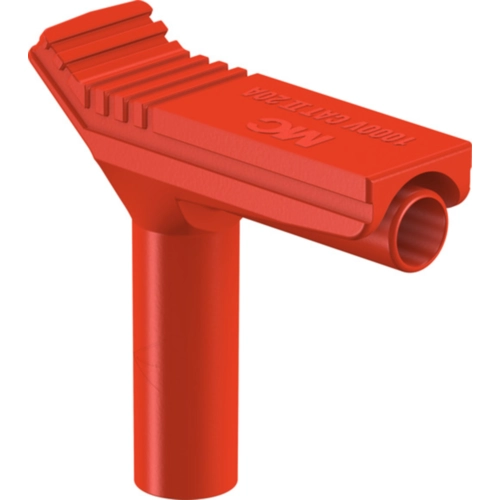

Insulated right-angle plug adapter, made of brass. Ø 4 mm plug with spring-loaded Multilam and with rigid insulating sleeve and Ø 4 mm rigid socket accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. This right-angle plug adapter is suitable in particular for instruments with front panel sockets where the lead can be fitted with the maximum of convenience.

Technical Data

  • Version: Right-angle plug adapter
  • Colour: red
  • Rated voltage: 1000 V
  • Rated current: 20 A
Technical specifications
Version Winkelsteck-Adapter
Rated Voltage 1000 V
Rated current 20 A
Colour rot
contact surface vernickelt
Rated category CAT II
Site (1) 4 mm Stecker
Site (2) 4 mm Buchse
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
