24.0238-22 | Stäubli Electrical Connectors

Test probe, socket 4 mm, rigid, 1 kV, red, 24.0238-22

Order No.: 35F1584
EAN: 4099891479855
MPN:
24.0238-22
SPP4-S/F ROT

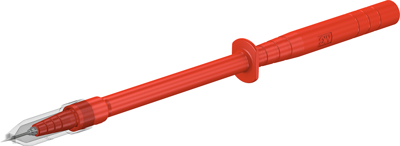

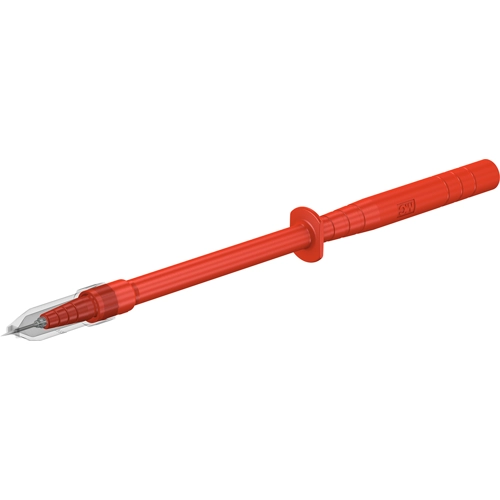

24.0238-22 Stäubli Electrical Connectors Test Leads and Test Probes Image 1

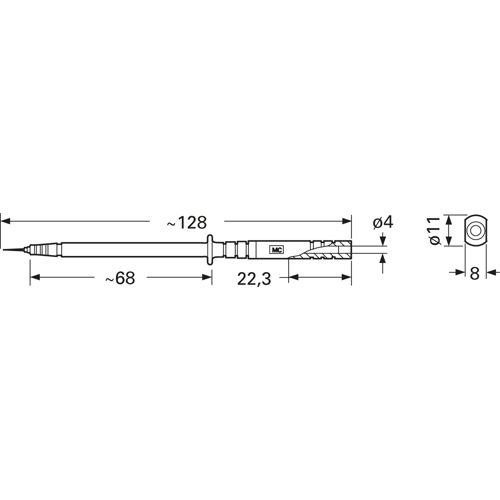

24.0238-22 Stäubli Electrical Connectors Test Leads and Test Probes Image 2
Image may differ
Unit Price (€ / pc.)
16.0888 € *
Available: 7 pcs.
Leadtime: 1 Week **
Total Price:
16.09 € *
Price list
Quantity
Price per unit*
1 pcs.
16.0888 €
10 pcs.
14.1372 €
50 pcs.
13.1971 €
100 pcs.
12.6140 €
500 pcs.
11.9595 €
*incl. VAT plus shipping costs
**Subject to prior sale

Test probe, 24.0238-22, Stäubli Electrical Connectors

Spring-loaded stainless steel needle which reacts resiliently under light pressure. Specially suited for sensitive printed circuits. Test probe with handle guard chamfered on both sides. Ø 4 mm rigid socket in handle accepting spring-loaded Ø 4 mm plugs with rigid insulating sleeve. Supplied with protective cap.

Technical specifications
Connection Buchse 4 mm, starr
Rated voltage 1 kV
Colour rot
Material Insulation PA
Contact material Edelstahl
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Blei
